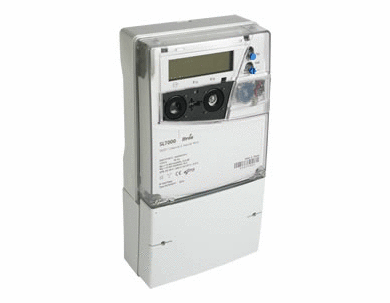

ACE SL7000 High-End Industrial Meter

Price: No Price

Availability: Price On Application

Prod. Code: ACESL7000



The ACE SL7000 meter is a mature and reliable meter ideally suited to commercial, industrial and substation applications with a large installed base around the world. The future-proof concept of the ACE SL7000 meter ensures that it continues to respond to all new market requirements. The ACE SL7000 is also available in customised versions for local requirements.



The ACE SL7000 generates several types of metrological data which allows multiple recording of load profiles for classical billing applications. This data also ensures the monitoring of voltage quality and network security.



Reduced inventory costs are possible due to the auto-ranging power supply and extremely wide measuring range.
The ACE SL7000 is compatibile with several communication modes (PSTN, GPRS, IP...) to ensure adaptability with existing infrastructures and therefore reduce data collection costs.


Features + Benefits
Key Features   Main Benefits
  • Voltage: 3x57.7/100V to 3x277/480V
  • Current 1 to 10 A (CT), 5 to 120 A ( DC)
  • Network types: 3 or 4-wire meter configuration
  • Accuracy:
    DC: Class 1 CT: Class 0.5s and 0.2s Reactive energy: accuracy 0.5
  • Frequency: 50 or 60 Hz
  • 32 energy-rate registers and 24 demand-rate registers Load profile up to 16 channels
  • Numerous input output interfaces, RS 232 and/or RS 485 interfaces

  • Accuracy and linearity
  • Instantaneous values serve as a base for network monitoring
  • Summation features and multi-energy inputs
  • Simultaneous communication channels
  • DLMS/COSEM compliant
