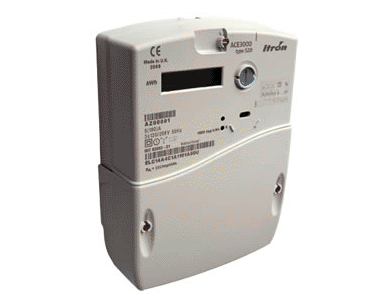

ACE 3000 Type 520 Residential Polyphase Single/Multi-Rate Electronic Meter

Price: $215.00

Availability: in stock

Prod. Code: ACE3000T520



The ACE3000 type 420/520 is a polyphase single/multi-rate residential meter. Depending on the configuration, it can have an integrated Real Time Clock for up to 6 rates with Maximum Demand. It also has a host of anti-fraud features. It provides extra information for on-site installation diagnostics including wrong phase sequence, reverse energy and voltage/current per phase. The metering data can be transferred into a HHU device on-site through the optical port or remotely through the optional Data Bus Output port. Different options can be combined together to meet customer requirements.

Features + Benefits
Key Features   Main Benefits
  • 3-phase 4-wire or 3-wire installations; 50 or 60Hz
  • 5(100)A current rating direct connection
  • Class 1 or 2 (IEC), Class A or B (MID) accuracy
  • Backlit display
  • Optional relay for load control
  • Extended operating temperature range

  • Single or Multi Tariff operation
  • Display available without mains power (optional)
  • Sealable IP links / Eliminated IP links
  • Optical interface and optional SO pulse output programmable for integration in a data collection or load management system
  • Internal Real Time Clock (optional)
  • Terminal cover opening and magnetic event detection/reporting (optional)
  • Configurable, up to 18 sets of billing data (optional)
  • Long service lifetime without inspection
