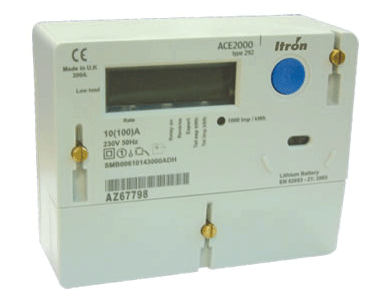

The ACE2000 type 292 meter with internal real-time clock is a compact BS meter offering cost-effective, complex tariff functionality with enhanced features. An integrated, flexible, programme management capability gives full Time Of Use (TOU) metering, eliminating the need for an external timing device.
Features + Benefits
Key Features
Main Benefits
220-240V 50Hz reference voltage/frequency
1-phase 2-wire network
Class 1 or 2 (IEC), Class A or B (MID) accuracy
10A or 20A basic, 100A maximum current
Up to 8 switching times for each day type and season giving 160 switching times
Up to six tariff rate registers
Maximum Demand for each tariff rate
Internal real time clock
Display readable without mains power (RWP)
Magnetic immunity with magnetic event detection and recording
